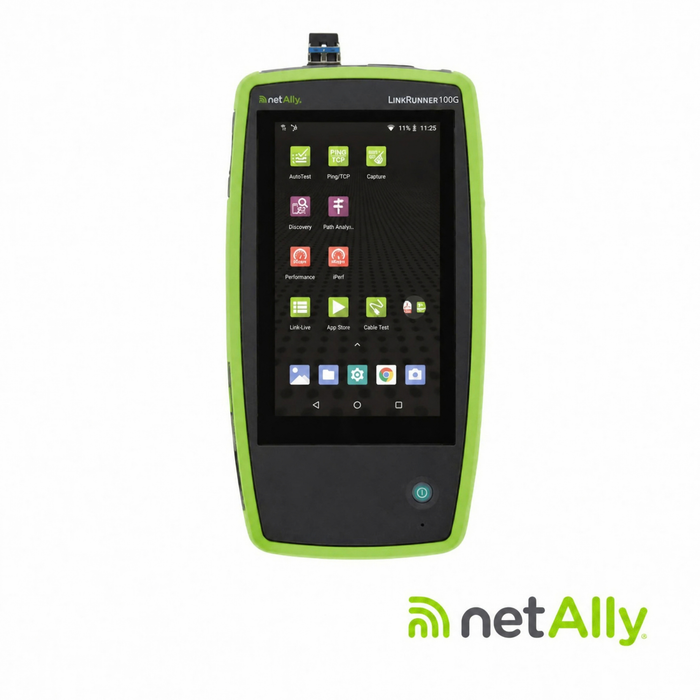

NetAlly LinkRunner 100G
Fast delivery from stock MOQ's apply on some items
Need some help? Call us on 01403 754233
Install, validate, and troubleshoot high-speed Ethernet - from 25G to 100G - with confidence.
LinkRunner 100G is a handheld tester that quickly validates high-speed fiber links. With one-button testing, any technician can identify faults across the fiber, optics, and network settings in minutes.
- One button, one plain answer: good, or here’s the fault
- Sees all four light streams separately, not one averaged number
- QSFP28 Inspector reads the optic and its FEC settings
- No fiber specialist required — any technician can run it
Available with 1 year or 3 years of AllyCare Pro Support
|
Dimensions |
4.09 in x 7.72 in x 2.80 in (10.4 cm x 19.6 cm x 7.1 cm) |
|
Weight |
2 lb (0.90 kg) |
|
Battery |
Rechargeable lithium-ion battery pack (7.2 V, 9.9 Ah, 71.3 Wh) |
|
Battery Life |
Typical operating life is 1.5-3 hours (Battery life from full charge varies depending on the feature being used); Typical charge time is 3 hours |
|
Display |
5.0 in color LCD with capacitive touch screen (720 x 1280 pixels) |
|
Host Interfaces |
QSFP28 Test port, RJ-45 Management Port, USB Type-A Port and USB Type-C On-the-Go Port |
|
SD Card Slot |
Supports Micro SD card storage - up to 64GB supported |
|
Memory |
Approximately 8 GB available for storing test results and user applications |
|
Charging |
USB Type-C 65W adapter 100-240 Vac, 50-60 Hz; DC Output Power 20 V (3.25 A) |
|
Media Access |
100GBASE-LR4, 100GBASE-SR4, 100GBASE-CR4, QSFP28 compliant modules. |
|
Supported IEEE Standards |
802.3bm, 802.3ba, 802.3bj |
|
Forward Error Correction |
FEC configuration detection and FEC counter tracking |
